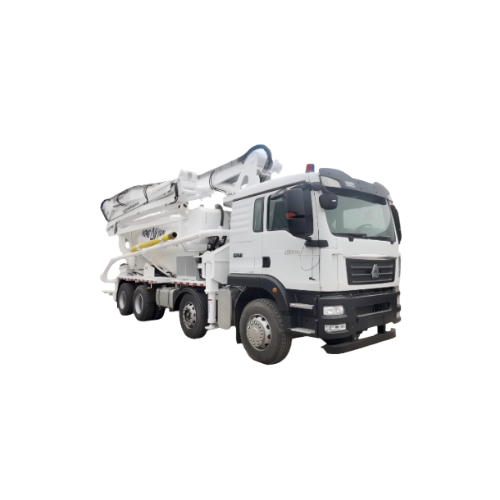

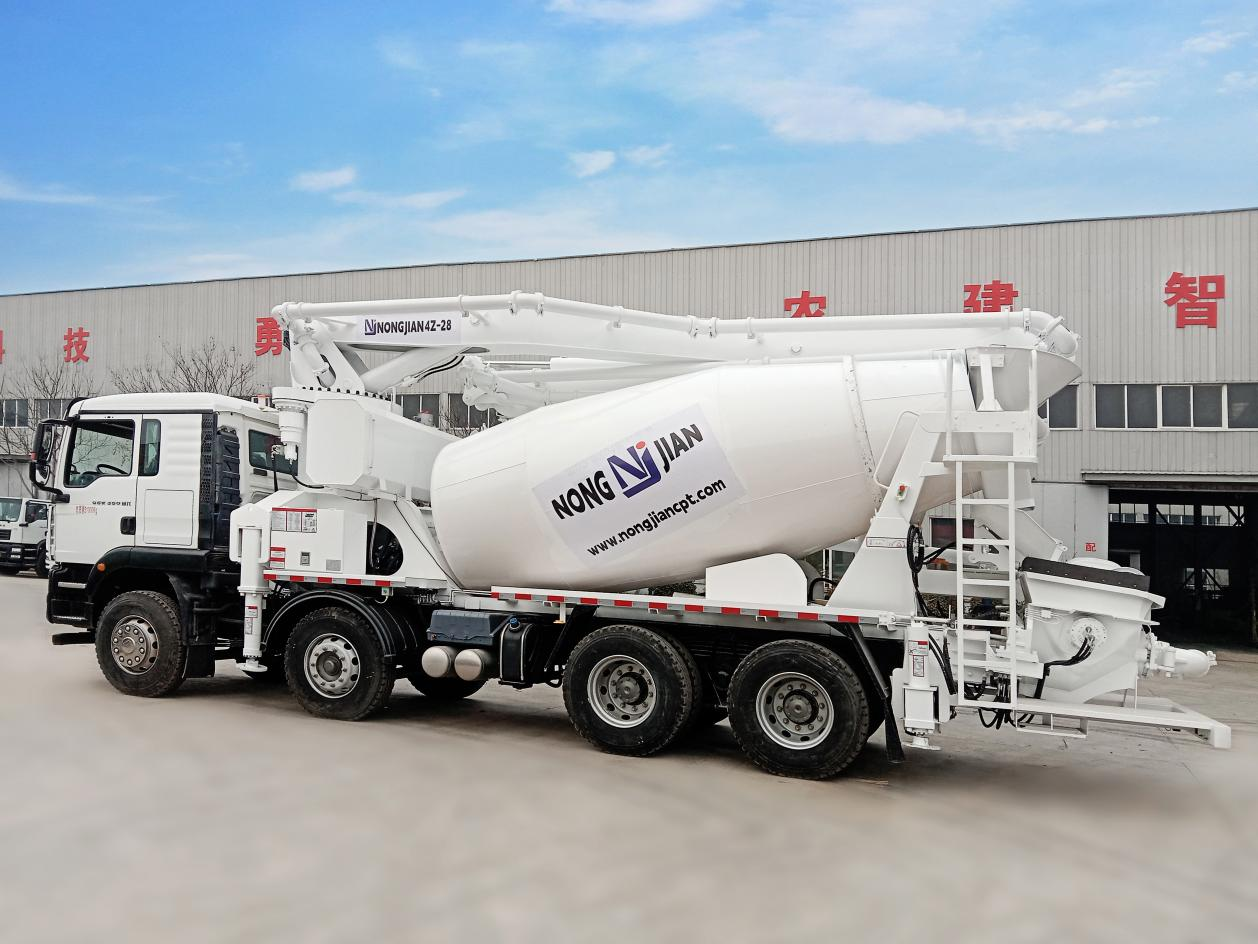

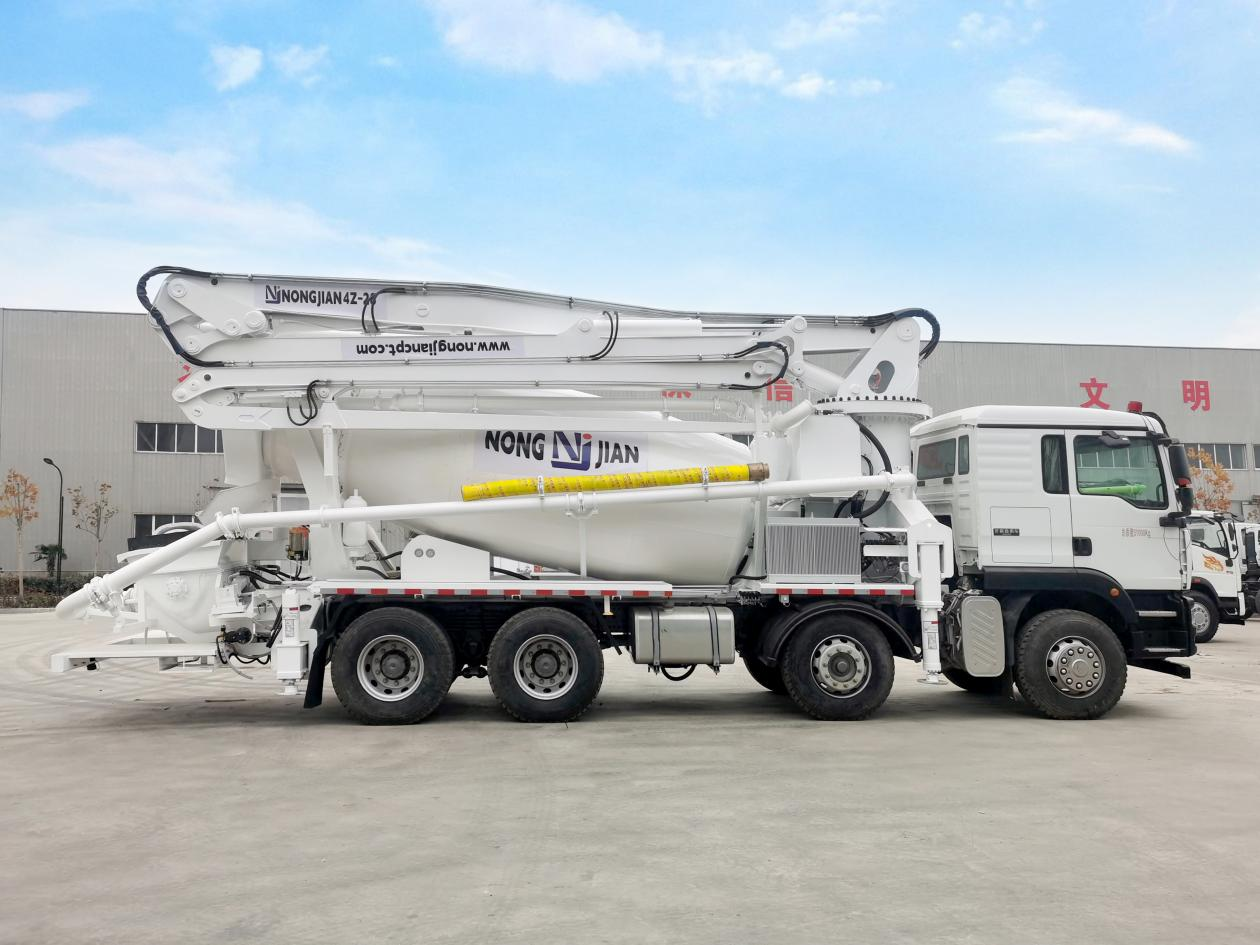

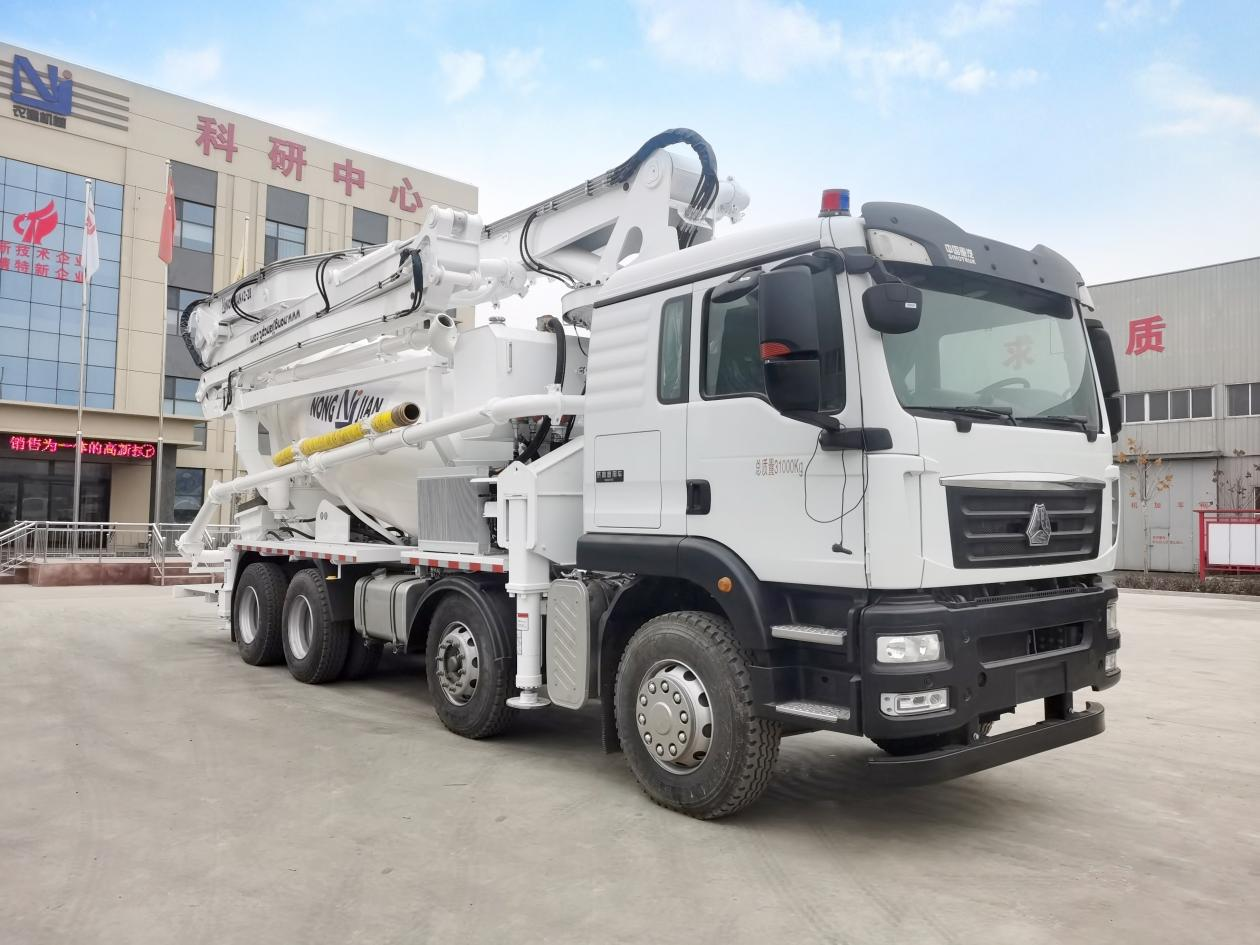

Nongjian 8m³ 28M Drum Mixer Pump Truck: Your all-in-one solution for efficiency. It seamlessly combines concrete mixing and high-reach pumping, delivering unmatched versatility for mid-range construction projects. Experience reduced costs, faster project timelines, and superior performance on-site.
| GENERAL | |
| Dimension(L*W*H) | 10800mm*2550mm*4100mm |
| Total Weight | 21800Kg |
| Max Vertical Reach | 28m |
| Max Herizontal Reach | 23.8m |
| Outrigger Span:Front/Rear /Front-Rear |
3960mm/3216mm/7400mm |
| Chassis Brand | SITRAK/HOWO |
| Hydraulic Oil Tank Capacity | 300L |
| Hopper Volume | 0.45m³ |
| BOOM PUMP | |
| Boom folding | 4R |
| Boom Rotation Angle | 90°/180°/222°/201° |
| Turntable Rotation Angle | ±360° |
| End Hose Length | 3 M |
| Theoretical Output | 80³/h |
| Theoretical Pumping Pressure | 8-12Mpa |
| Main Hydraulic Oil Pump Brand | Rexroth |
| Remote control | OHM |
| Inner diameter of conveying pipe | 125mm |
| DRUM | |
| Volume | 8m3 |
| Theor displacement | 90cc/rec |
| Theor pressure | 28MPa |
| Theor rpm | 2300rmp |
| Output torque | 70000Nm |
Saves time and cost by mixing and pumping with a single unit.
Ensures a constant concrete supply for uninterrupted pouring.
Compact and agile, it easily accesses and works in constrained areas.
Lowers total project costs by minimizing the need for multiple machines.
