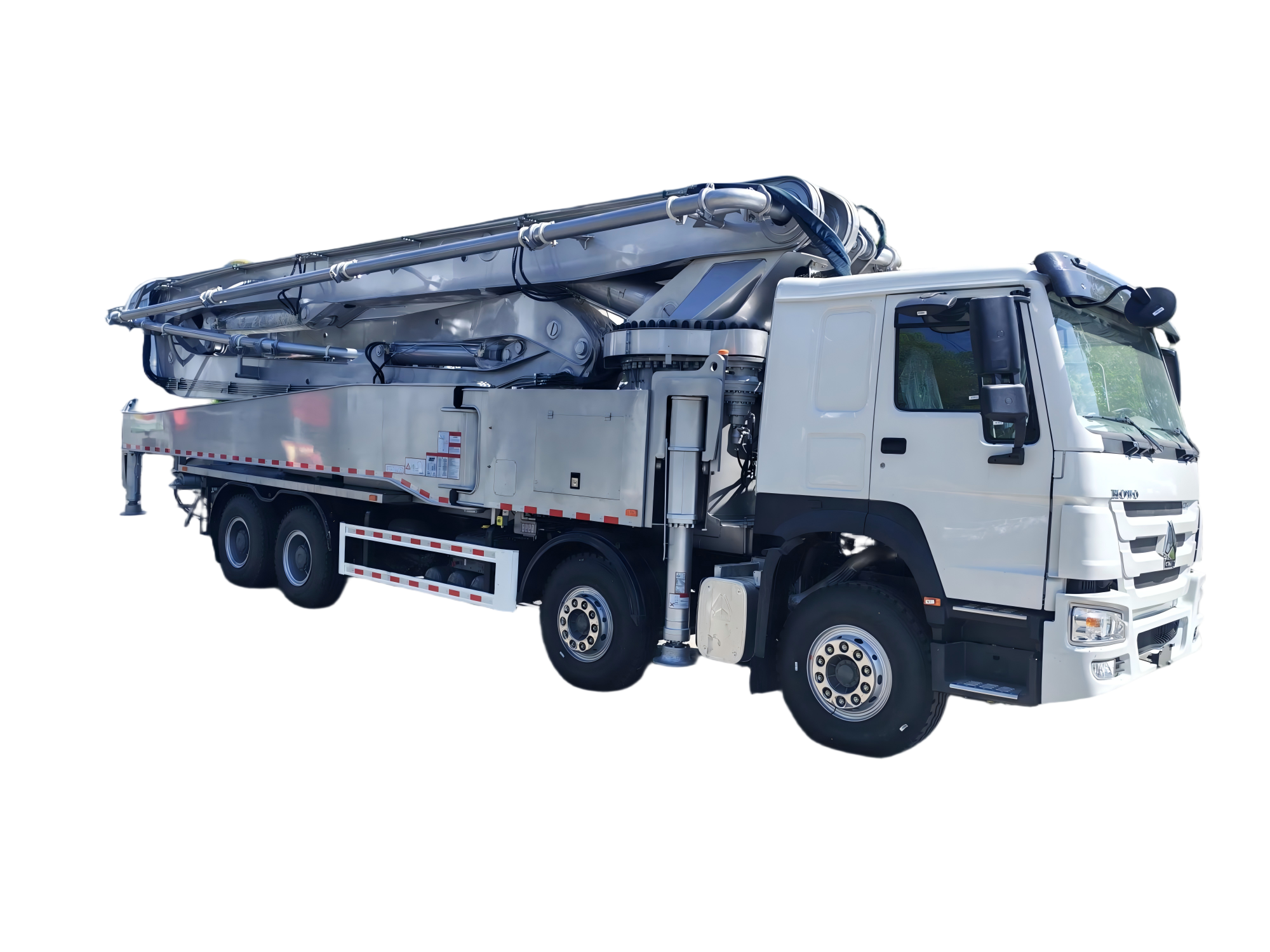

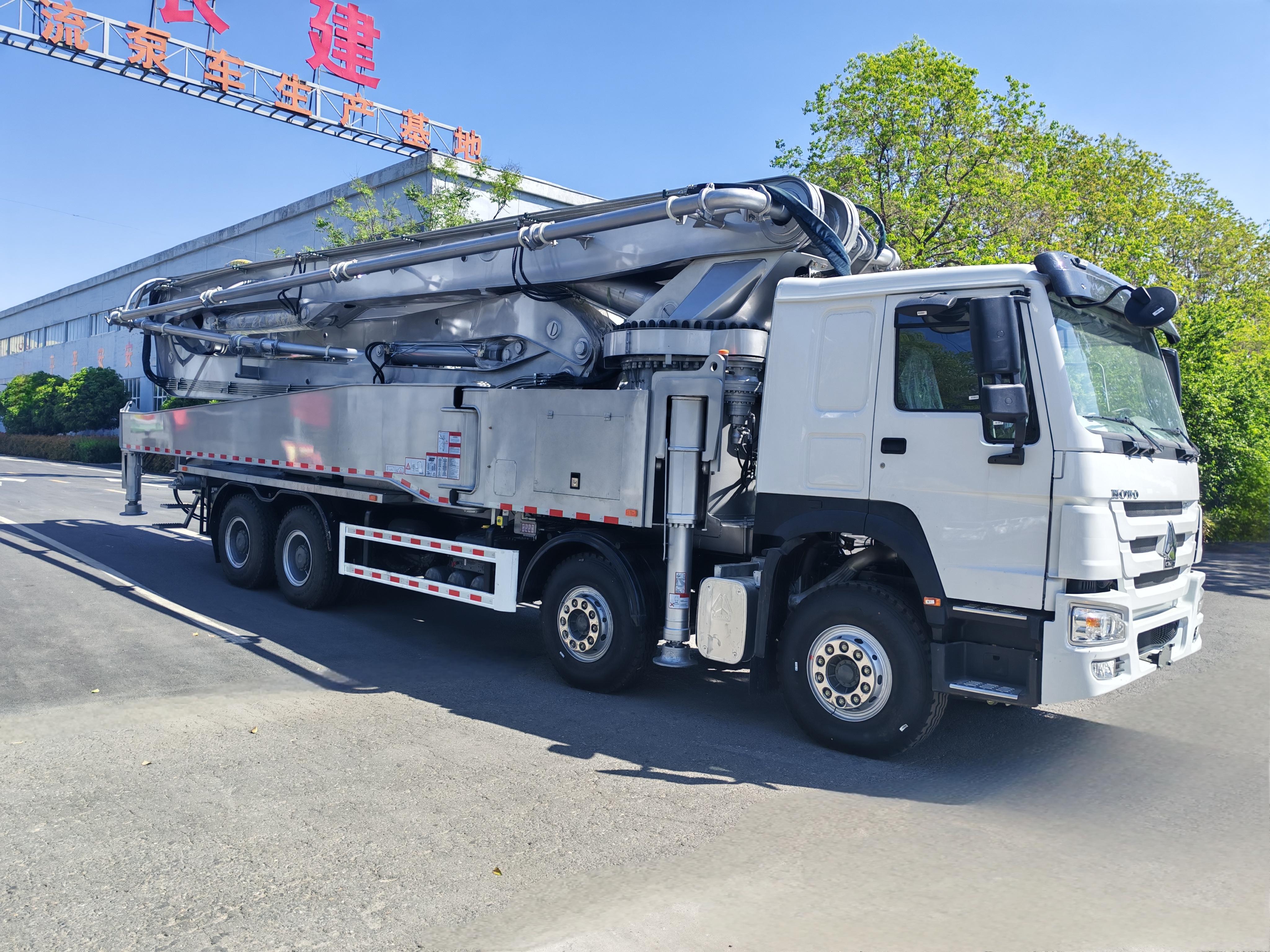

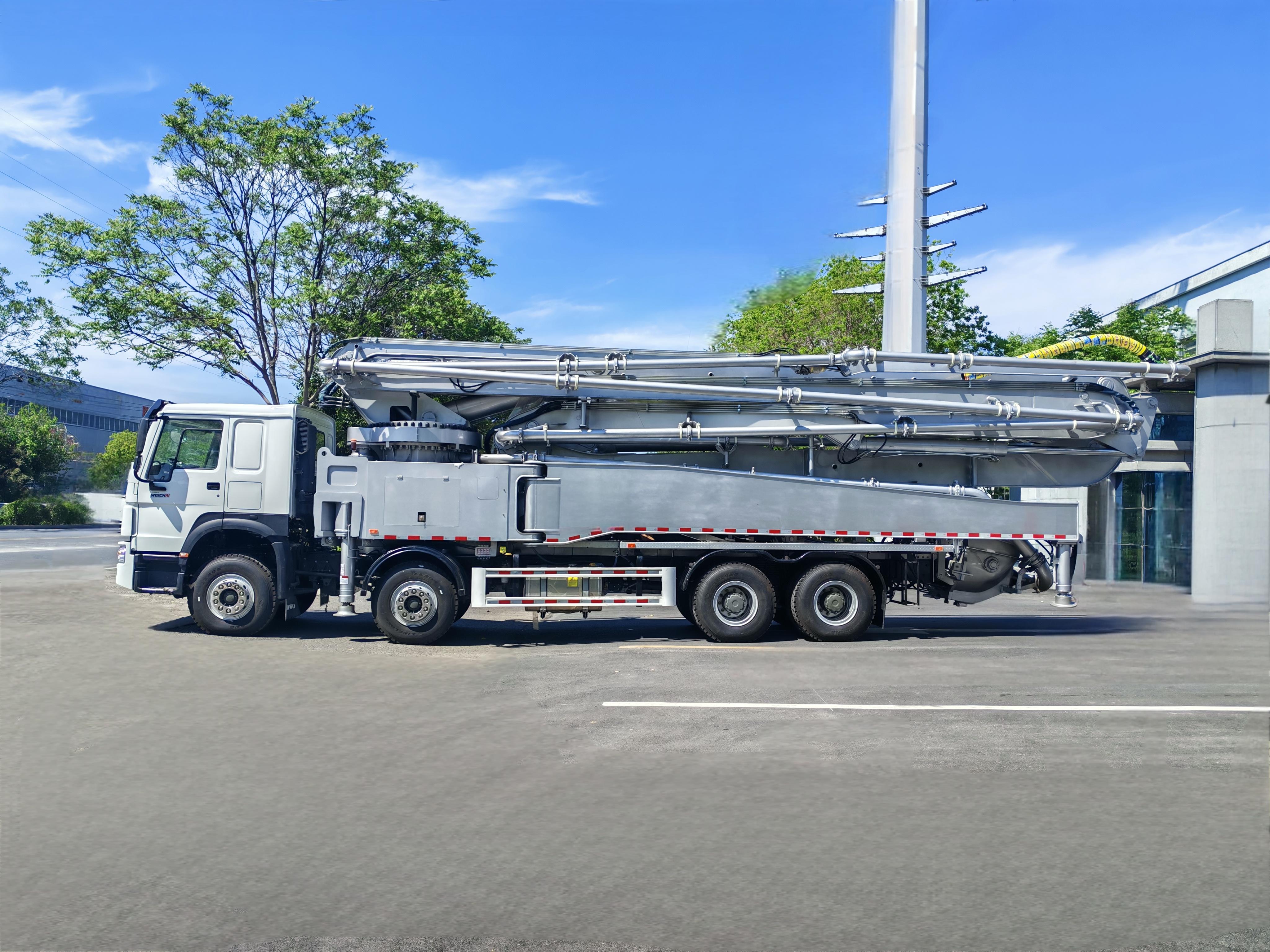

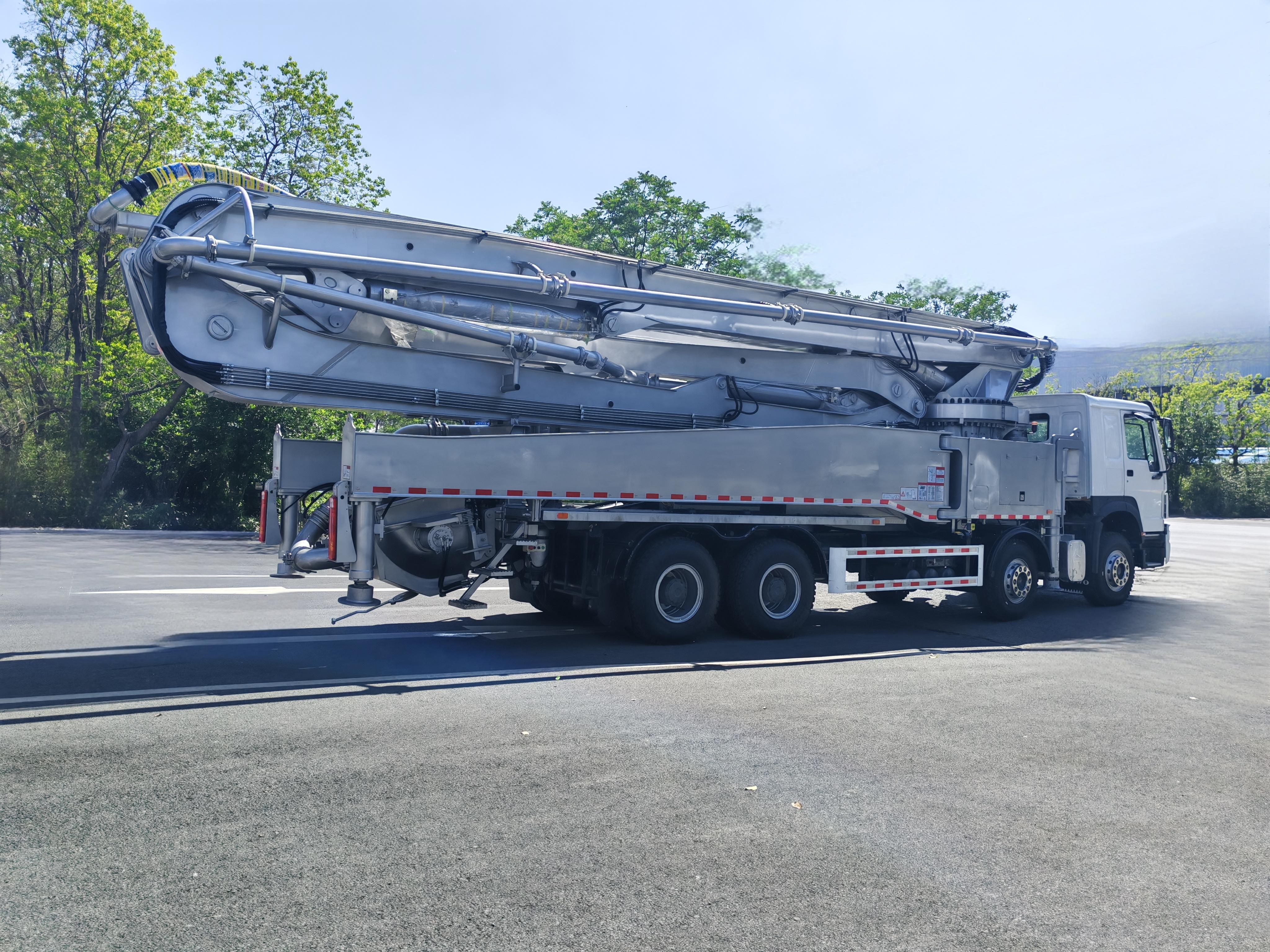

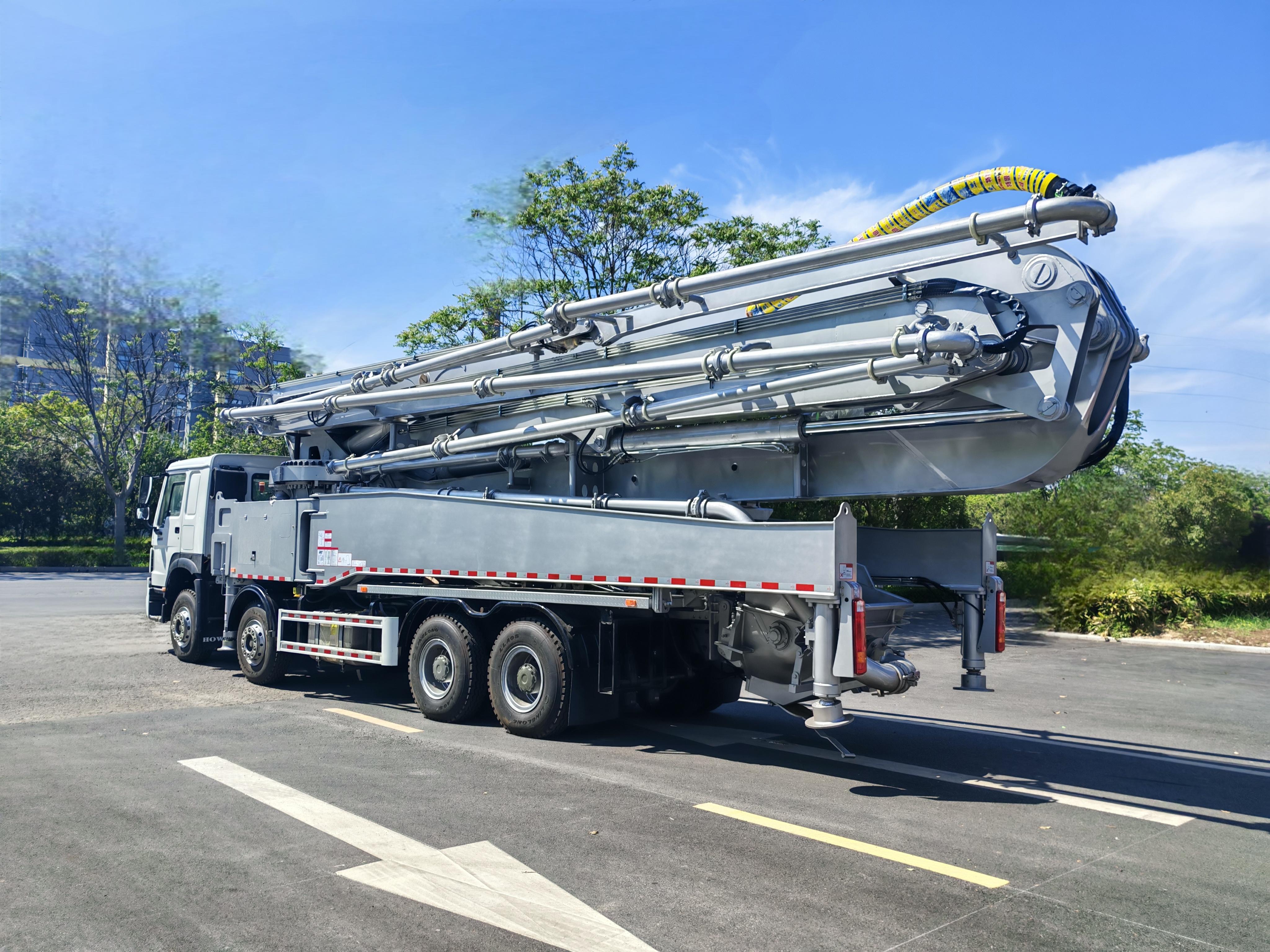

Nongjian 56m concrete pump truck combines extensive reach with powerful performance. Its 6RZ boom delivers exceptional flexibility and coverage, maximizing efficiency on high-rise residential and commercial projects. Engineered for stability and fuel economy, it is the intelligent solution for productive and reliable concrete placement.
| GENERAL | |
| Dimension(L*W*H) | 13820mm*4000mm*2550mm |
| Total Weight | 44000Kg |
| Max Vertical Reach | 56m |
| Max Herizontal Reach | 42m |
| Max Reach Depth | 38m |
| Outrigger Span:Front/Rear /Front-Rear |
9475mm/12853mm/10483mm |
| Hydraulic System | Open |
| Chassis Brand | HOWO/SITRAK |
| Remote Control | HBC/OHM |
| Hydraulic Oil Tank Capacity | 700L |
| Hopper Volume | 0.6m³ |
| BOOM | |
| Boom folding | 6RZ |
| Boom Rotation Angle | 90°/180°/180°/240°/220°/110° |
| Turntable Rotation Angle | ±360° |
| End Hose Length | 3 M |
| Concrete slump | 160-220mm |
| Pump | |
| Theoretical Output | 170m³/h |
| Theoretical Pumping Pressure | 8-12Mpa |
| Main Hydraulic Oil Pump Brand | Rexroth |
| Main Hydraulic Oil Pump Displacement |
320/380ml/r |
| Concrete Pipe Diameter | 125mm |
