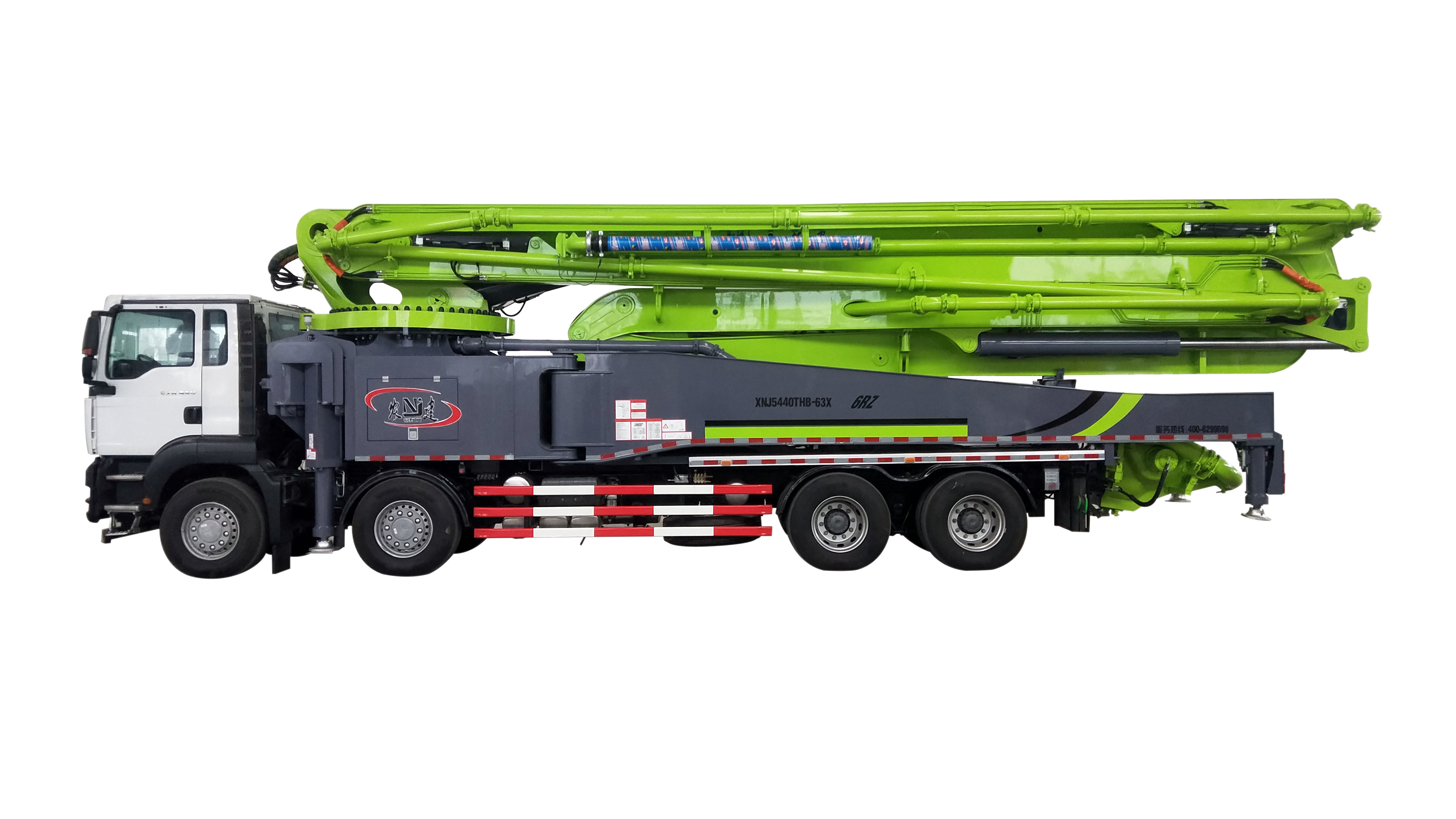

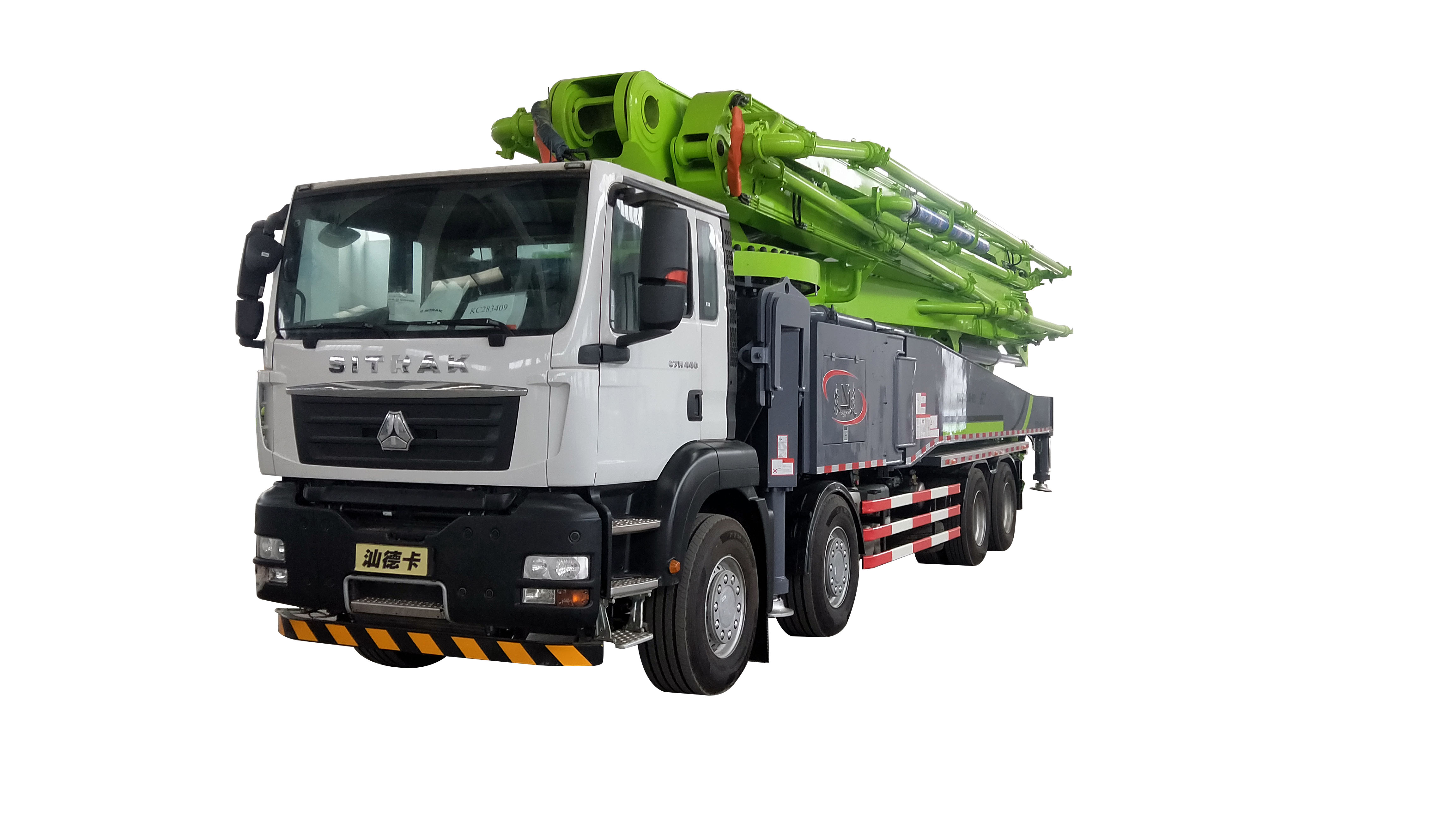

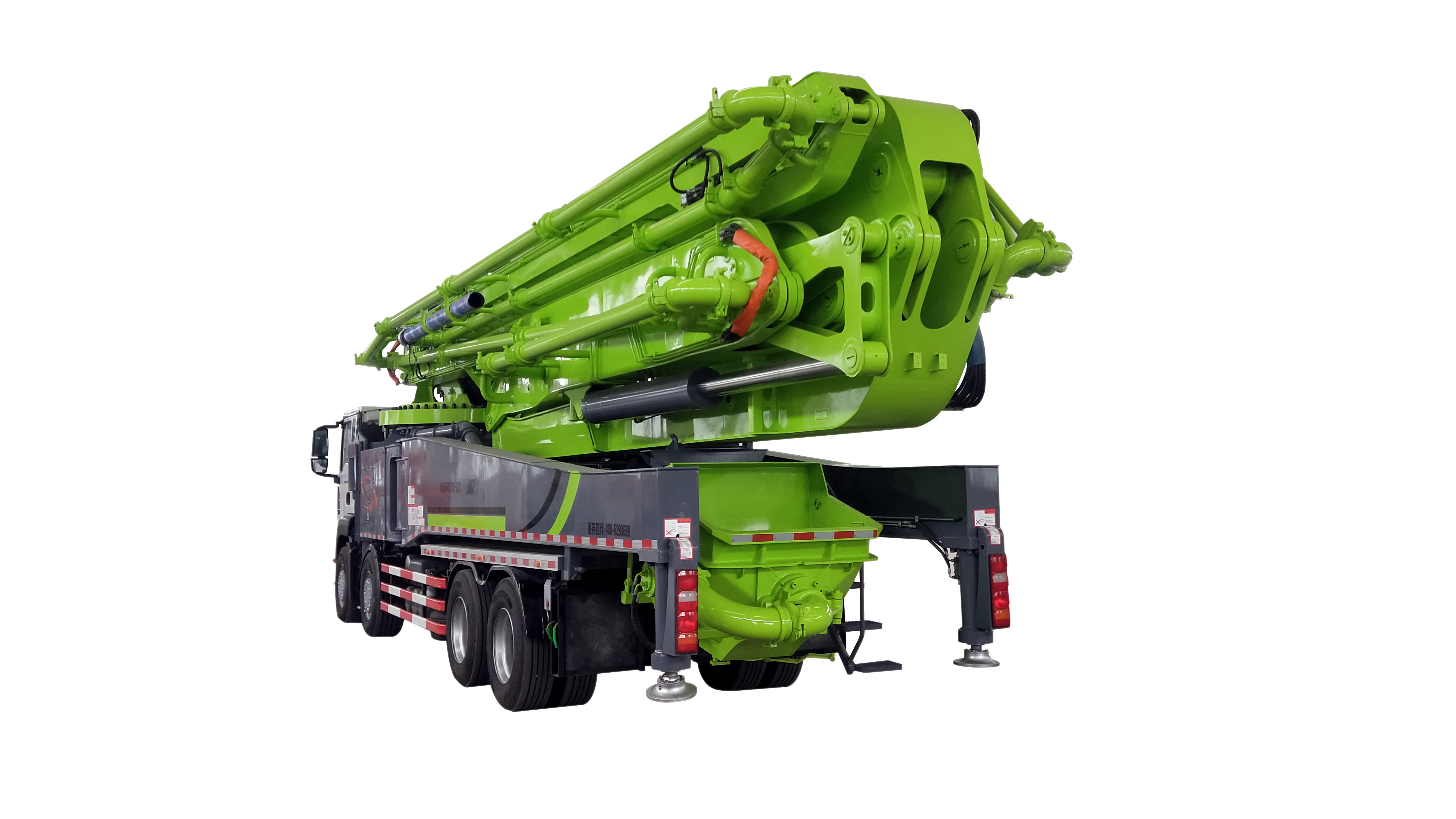

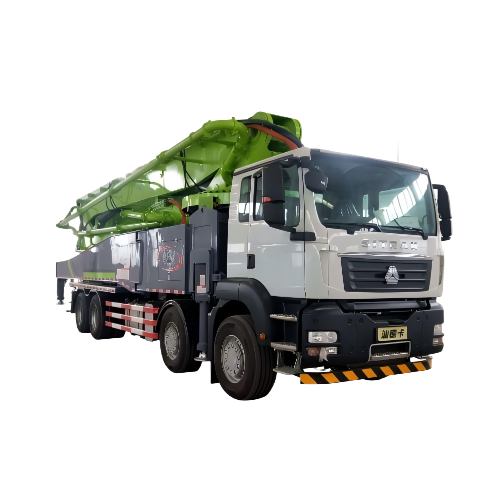

Nongjian 63m concrete pump truck delivers maximum reach for high-rise construction. With intelligent controls and superior stability, it ensures precise, efficient concrete placement for your most demanding projects. Power and performance redefined.
| GENERAL | |
| Dimension(L*W*H) | 14360mm*4000mm*2550mm |
| Total Weight | 44000Kg |
| Max Vertical Reach | 63m |
| Max Herizontal Reach | 58.5m |
| Max Reach Depth | 47m |
| Outrigger Span:Front/Rear /Front-Rear |
12870mm/12245mm/12347mm |
| Hydraulic System | Open |
| Chassis Brand | HOWO/SITRAK |
| Remote Control | HBC/OHM |
| Hydraulic Oil Tank Capacity | 700L |
| Hopper Volume | 0.6m³ |
| BOOM | |
| Boom folding | 6RZ |
| Boom Rotation Angle | 90°/180°/180°/240°/220°/110° |
| Turntable Rotation Angle | ±360° |
| End Hose Length | 3 M |
| Concrete slump | 160-220mm |
| Pump | |
| Theoretical Output | 170m³/h |
| Theoretical Pumping Pressure | 8-12Mpa |
| Main Hydraulic Oil Pump Brand | Rexroth |
| Main Hydraulic Oil Pump Displacement |
320ml/r |
| Concrete Pipe Diameter | 125mm |
