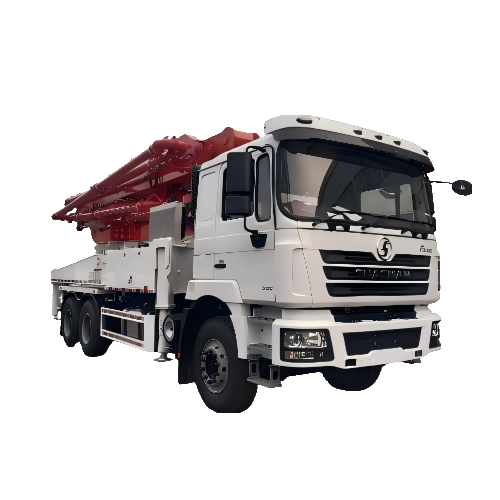

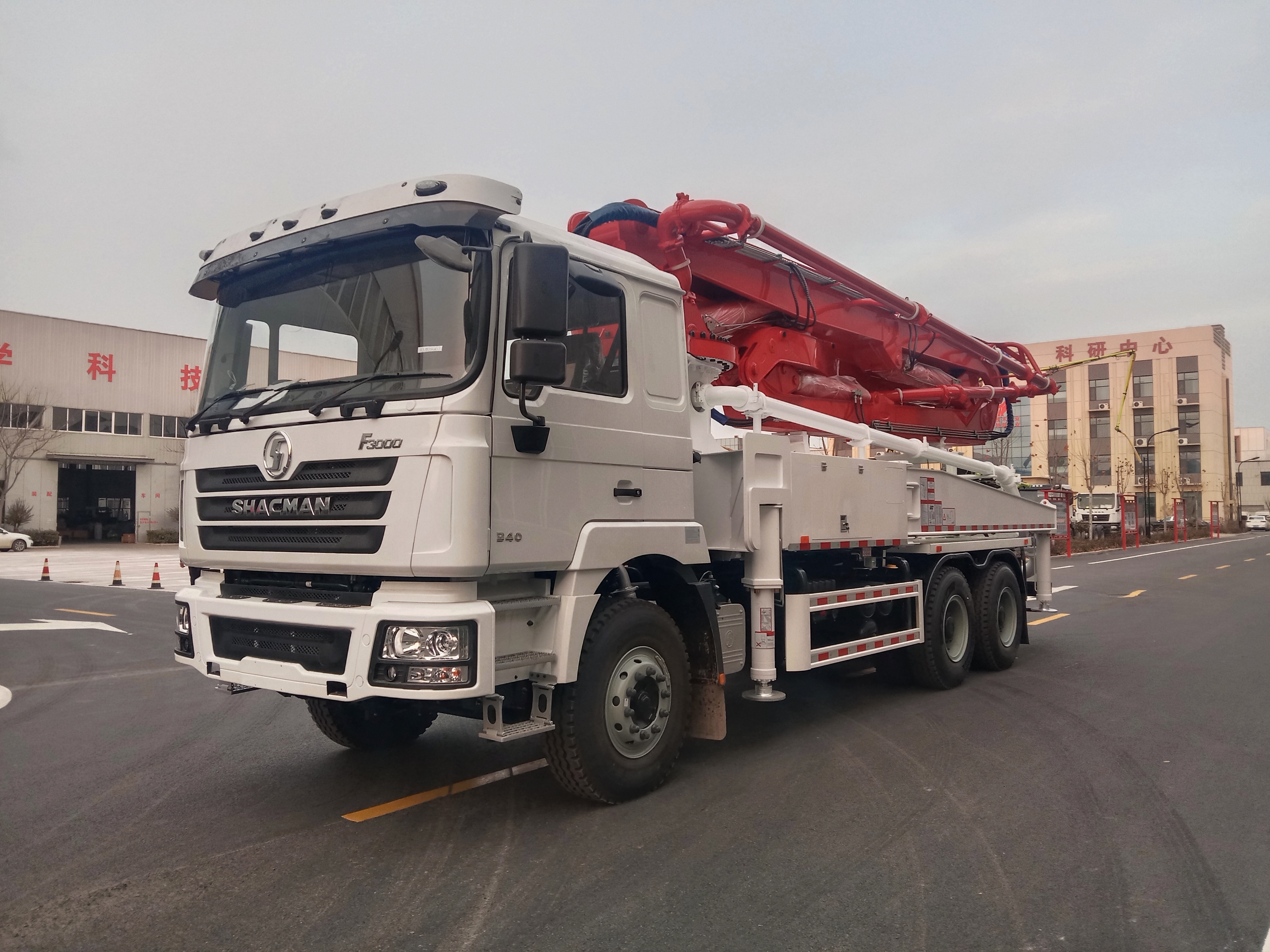

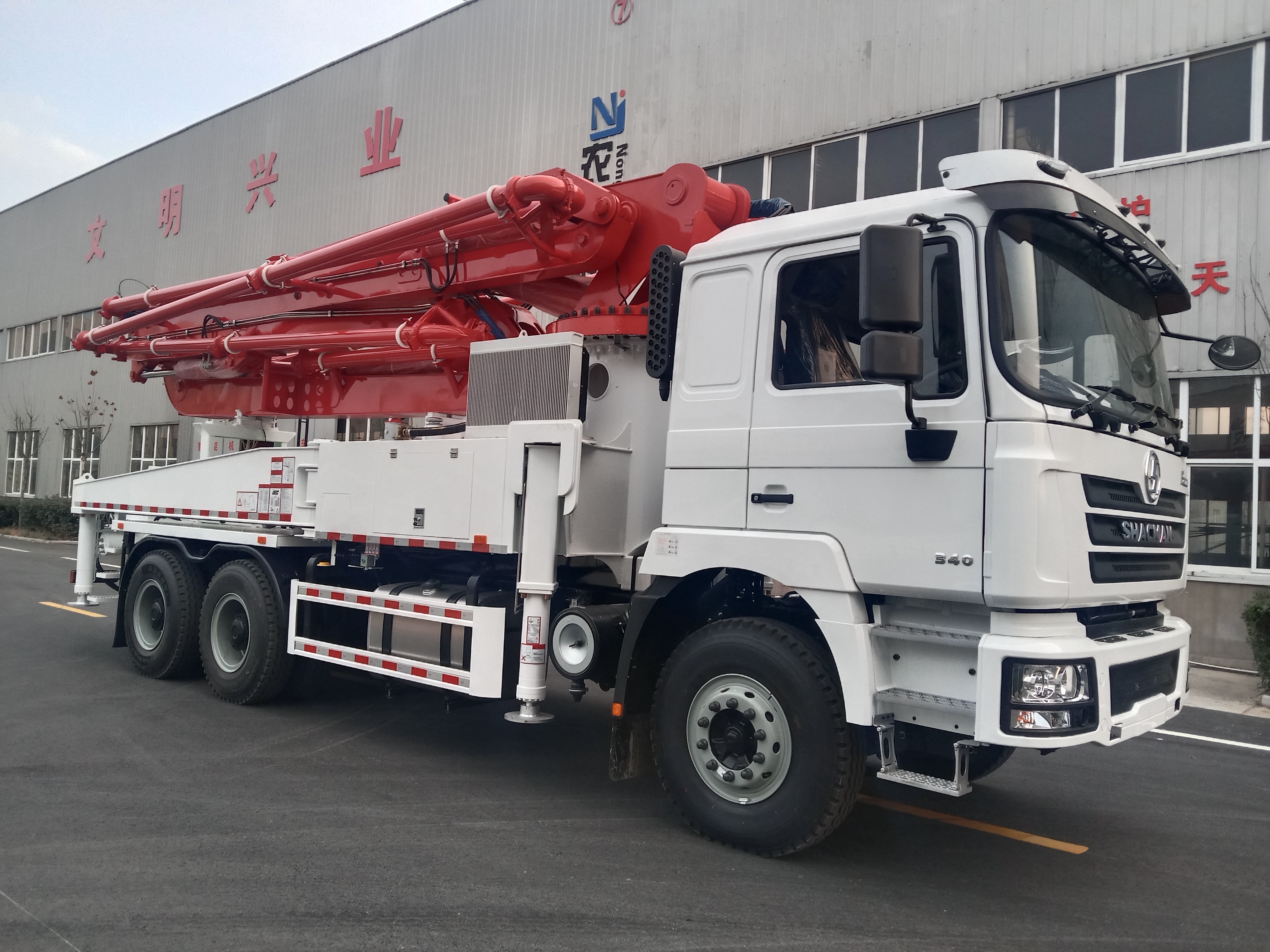

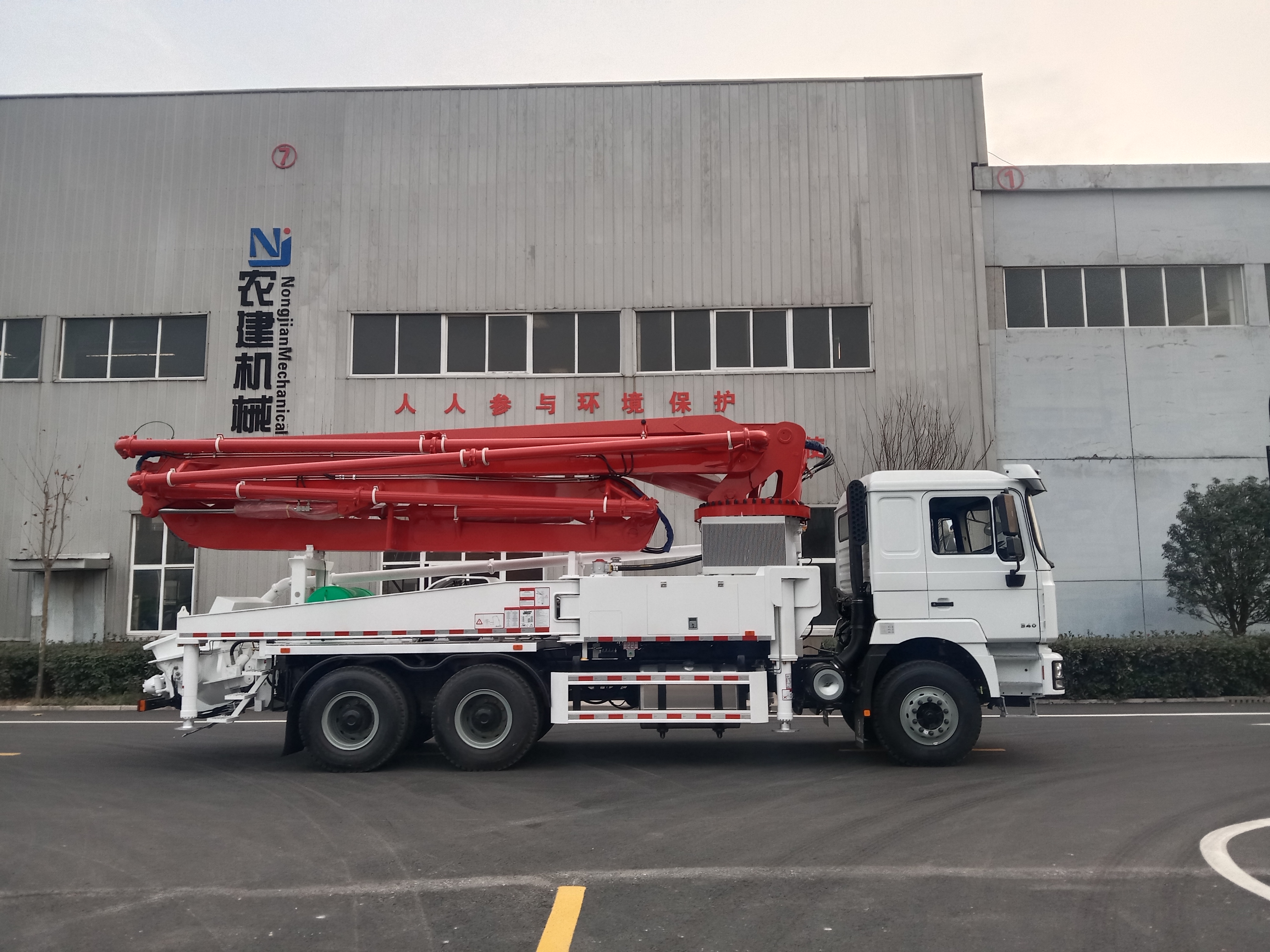

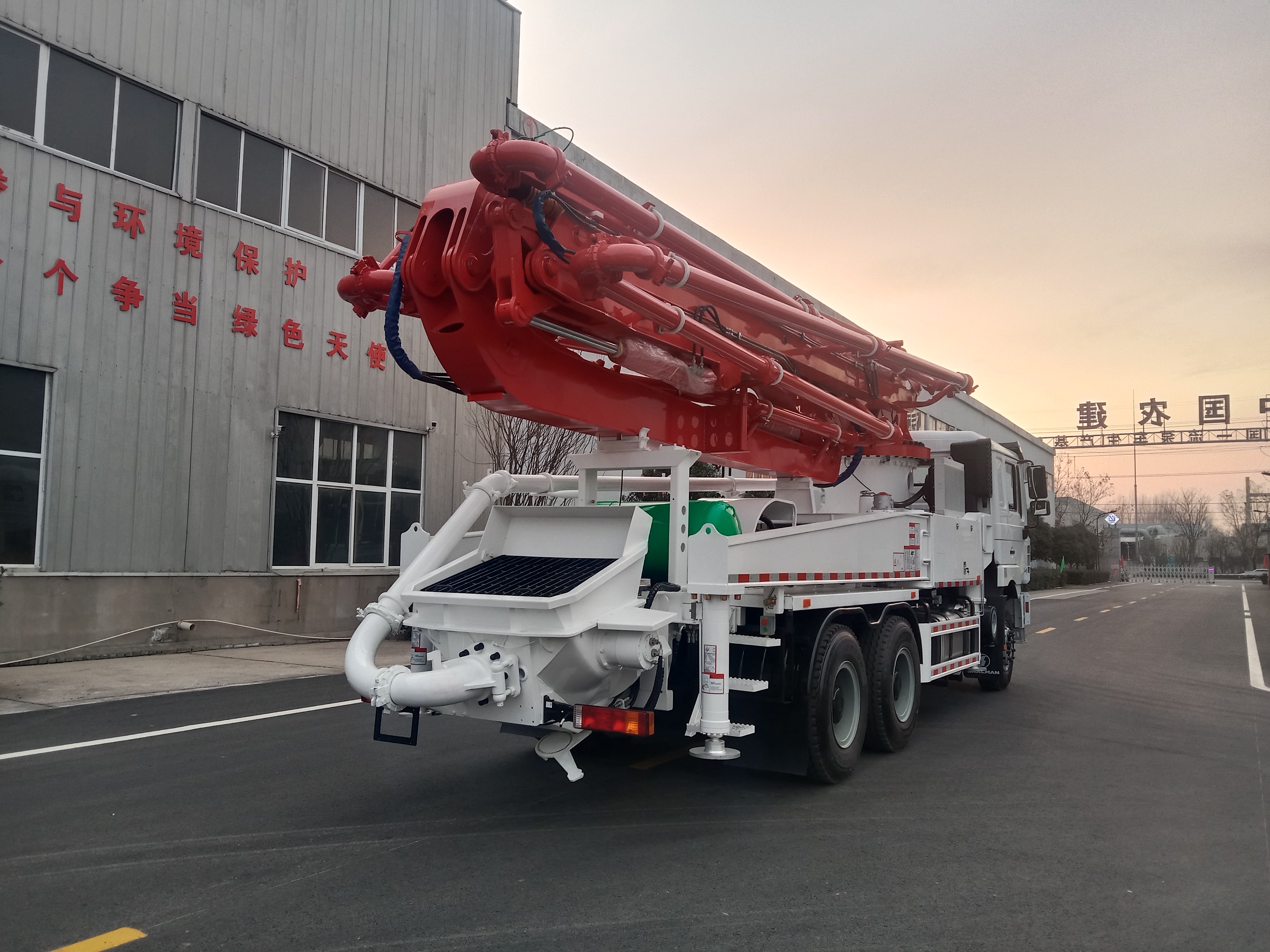

Nongjian 38m concrete pump truck is the ultimate all-rounder, engineered to tackle a wide range of projects with ease. From residential buildings to commercial complexes, it offers the perfect blend of reach, power, and compactness. Achieve more with less—reduce labor costs, accelerate timelines, discover the optimal solution for your contracting needs.
| GENERAL | |
| Dimension(L*W*H) | 10250mm*3720mm*2500mm |
| Total Weight | 22600Kg |
| Max Vertical Reach | 38m |
| Max Herizontal Reach | 33.5m |
| Max Reach Depth | 22m |
| Outrigger Span:Front/Rear /Front-Rear |
6800mm/8350mm/6800mm |
| Hydraulic System | Open |
| Chassis Brand | SHACMAN/HOWO |
| Remote Control | HBC/OHM |
| Hydraulic Oil Tank Capacity | 500L |
| Hopper Volume | 0.5m³ |
| BOOM | |
| Boom folding | 5RZ |
| Boom Rotation Angle | 90°/180°/180°/229°/212° |
| Turntable Rotation Angle | ±360° |
| End Hose Length | 3 M |
| Concrete slump | 160-220mm |
| Pump | |
| Theoretical Output | 170m³/h |
| Theoretical Pumping Pressure | 8-12Mpa |
| Main Hydraulic Oil Pump Brand | Rexroth |
| Main Hydraulic Oil Pump Displacement |
190ml/r |
| Concrete Pipe Diameter | 125mm |
Optimal agility for quick setup and operation in confined spaces.
Cost-efficient performance for a wide range of mid-rise projects.
Excellent reach and maneuverability to place concrete with precision.
Ideal balance of size and power, enhancing job site productivity.
